Resistive Tap Splitter

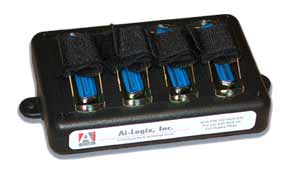

RTS Box (For use with NGX)

Key Features and Benefits
The RTS BOX provides voice and D-channel data for the Avaya INDeX, Mitel SX200/SX2000* and the Siemens Rolm 9751. The unique design supports all 3 PBXs with one assembly. The RJ21x Amp connectors provide reliable connections to the NGX, PBX, and phones by treating the PBX as a 4-wire supporting half the cahnnels.

Provides both voice and D-channel data for:
• Avaya INDeX
• Mitel SX200/SX2000
• Siemens Rolm 9751
Breaks out full-duplex signal into 2 half-duplex signals
Passive device - No power supply required
Active/Passive Tap 4 or 8 port telephony card: The SmartTAP LD

The RTS Box...
The RTS BOX is a tap-point product designed for use with the SmartTAP NGX. Using the RTS BOX with two NGX2400 boards provides a 24-port solution for call recording applications.






Applications
Click to see how the RTS box integrates into your application...>



PART NUMBER
910-2013-001 RTSBox
